Sport Touring ST2/ST4

SPORT TOURING2

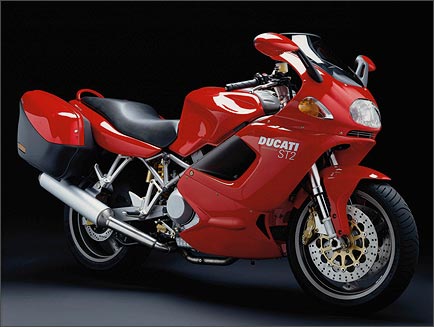

The Ducati ST2 is a spirited combination of performance and usability. With its powerful fuel injected 944cc L-Twin engine and rigid tubular steel trellis frame, the ST2 delivers the performance of a sport bike while its relaxed ergonomics and quality of design provide the
all-comfort of a touring bike. Smooth and refined, the ST2 is one of the most versatile motorcycles
in the world, striking the perfect balance between sport and touring.

SPORT TOURING4

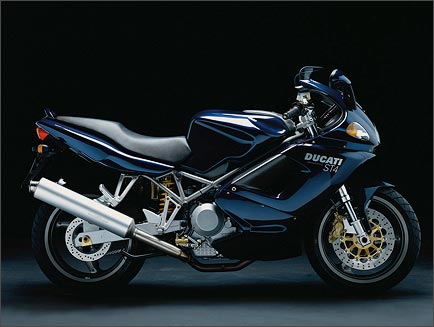

The Ducati ST4 occupies a position at the performance end of the Sport Touring spectrum. The ST4 combines elements of a true sport bike, like Ducati's powerful fuel injected 916cc four valve
Superbike engine, with the same innovative design features found on the ST2. As versatile as it is
fun to ride, the ST4 lets you enjoy the excitement and performance of a Superbike in comfort.

Evolution:
Ducati's interpretation of the Grand Touring motorcycle while retaining a racing spirit in terms of engine power and the characteristics of the ride

ST bikes are descendants of the Ducati Paso which represented a well-thought out riding position that it became the favorite high speed, long-distance touring bike of many experienced riders

ST2 was launched in 1997 and proceeded to win the 1997 MCN magazine "Sport Tourer of the Year" Award

1998 marked the introduction of the ST4, a more powerful and technologically advanced 4-valve version of the ST2

Features:
Sport bike performance aimed at riders who prefer longer rides

Provides all the speed, handling and styling of a Ducati with a more comfortable ergonomic configuration

A water cooled system

ST

ST2

ST4

Engine Type

"L" twin cylinder, 2 valves desmodromic, liquid cooling

"L" twin cylinder, 4 valves desmodromic, liquid cooling

Displacement

944cc

916cc

Bore and Stroke

94 x 68 mm

94 x 66 mm

Compression Ratio

10.2:1

11:1

HP

83 HP @ 8500 rpm

105 HP @ 9000 rpm

Torque

61 ft. lbs. @ 7500 rpm

64 ft. lbs. @ 7500 rpm

Injection

Marelli electronic injection, 45mm throttle bodies

Marelli electronic injection, 50mm throttle bodies

Exhaust

2 aluminum mufflers

2 aluminum mufflers

TRANSMISSION

Type

6 speeds with straight gears

6 speeds with straight gears

Ratio

(1) 2.46 (2) 1.76 (3) 1.35

(4) 1.09 (5) 0.95 (6) 0.85

(1) 2.46 (2) 1.76 (3) 1.35

(4) 1.09 (5) 0.95 (6) 0.85

Primary Drive

Straight cut gears; ratio 1.84

Straight cut gears; ratio 1.84

Final Drive

Chain; Front sprocket 15, Rear sprocket 42

Chain; Front sprocket 15, Rear sprocket 43

Clutch

Dry Multiplate

Dry Multiplate

CHASSIS

Frame

Tubular trellis frame

Tubular trellis frame

Wheelbase

1430 mm

1430 mm

Rake

24 degrees

24 degrees

SUSPENSION

Front Suspension

43mm Showa upside-down fully adjustable

43mm Showa upside-down fully adjustable

Front Wheel Travel

130 mm

130 mm

Front Wheel

3-spoke light alloy, 3.5 x 17"

3-spoke light alloy, 3.5 x 17"

Front Tire

120/70 VR 17

120/70 VR 17

Rear Suspension

Progressive linkage with fully adjustable monoshock

Progressive linkage with Showa fully adjustable monoshock

Rear Wheel Travel

148 mm

148 mm

Rear Wheel

3-spoke light alloy, 5.5 x 17"

3-spoke light alloy, 5.5 x 17"

Rear Tire

170/60 VR 17

180/55 VR 17

BRAKES

Front Brake

2 320 mm discs with 4 piston calipers

2 320 mm discs with 4 piston calipers

Rear Brake

245 mm disc with 2 piston caliper

245 mm disc with 2 piston caliper

MISC.

Fuel Tank Capacity

5.5 gallons

5.5 gallons

Dry Weight

460 lbs.

473 lbs.

Seat Height

32.3 inches

32.3 inches

Colors

Red, Silver or Blue

Yellow, Red or Black

Frame and wheel colors

Racing Gold

Gun Metal Grey
